Fleet

Types Nbr. Dwat Capacity Crane Cap Containers
    (mt) (cbft) (mt) (teus)
A-type 8 12,000 525,000 3 x 40 678

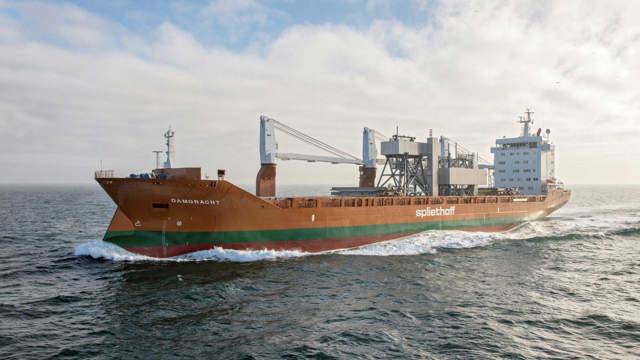

D-type 8 18,000 765,000 3 x 120 1,069
E-type 7 13,000 557,000 3 x 60 730

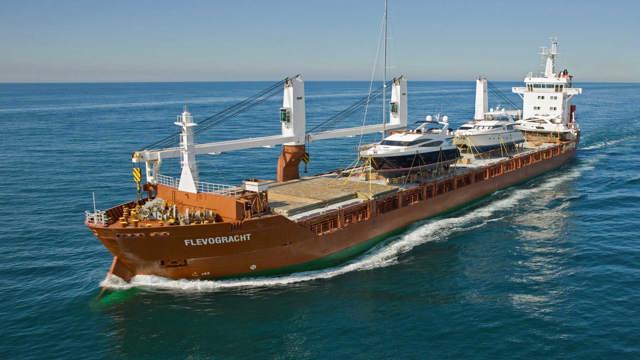

F-type 6 12,000 556,000 3 x 80 658
M-type 6 11,720 552,300 3 x 80 702

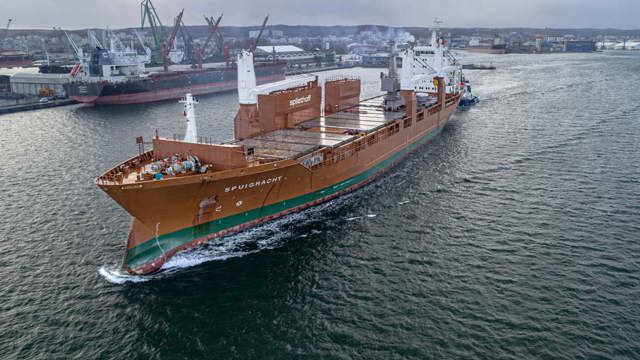

S-type 11 21,000 855,000 3 x 120 1,127

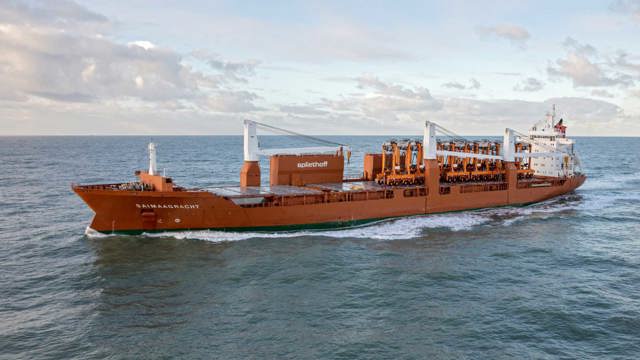

S2L-type 3 23,000 973,180 3 x 120 1,291







MAIN FEATURES

Flag
All vessels fly the high quality Dutch flag.

Class
The vessels have the highest classification from Lloyd's Register and have Finnish/Swedish Ice Class 1A. They are strengthened for heavy cargoes.

Holds
The vessels have box holds with large hatches up to 70,4 m with no understow. The hatches are end folding and the tweendecks can be adjusted to three different heights and can create up to 14 different compartments.

Cranes
All vessels are equipped with cranes with a capacity varying from 40 to 240 mt combined. Cranes are situated on the starboard or port side of the vessels facilitating unobstructed deck space.

Sideloader
The S-type has innovative side loading facilities with five sideloaders with a 16 mt capacity each. Covered working areas allowing all kind of weather operations.
